Cod:
PE02071

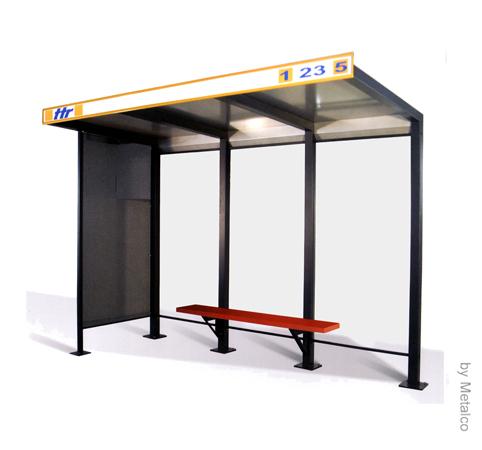

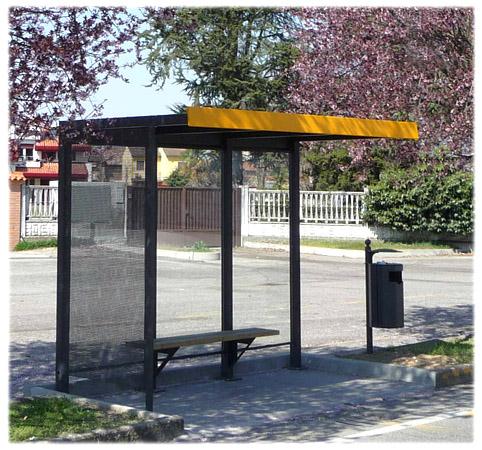

Shelter with a modular structure consisting of a series of columns with cantilevered arm made of 80x80mm steel tube with 200x200x10mm base plate surmounted by a cover made of galvanized sheet steel sheets, properly sealed with self-expanding adhesive seal to prevent infiltrations and shaped in the back to allow the outflow of rainwater directly outside the shelter.
The bottom walls are made of 4 + 4mm shatter-proof laminated glass with polished edge grinding and equipped with suitable gaskets and glazing beads.
The shelter is supplied, in the standard configuration, complete with seat in micro-perforated metal sheet or in autoclaved pine wood and, on request, painted in mahogany color, of section. 150x43mm for 1670mm of length, mounted on steel support brackets, and aluminum front door-holder.
On request, instead, you can have the side wall in perforated metal with front support column.
